American Dynamics ADSDU8E22N Dome SDU8E Color Camera Module

American Dynamics ADSDU8E22N Dome SDU8E Color Camera Module

American Dynamics ADSDU8E22N Dome SDU8E Color Camera Module

0 review(s) | Add your review

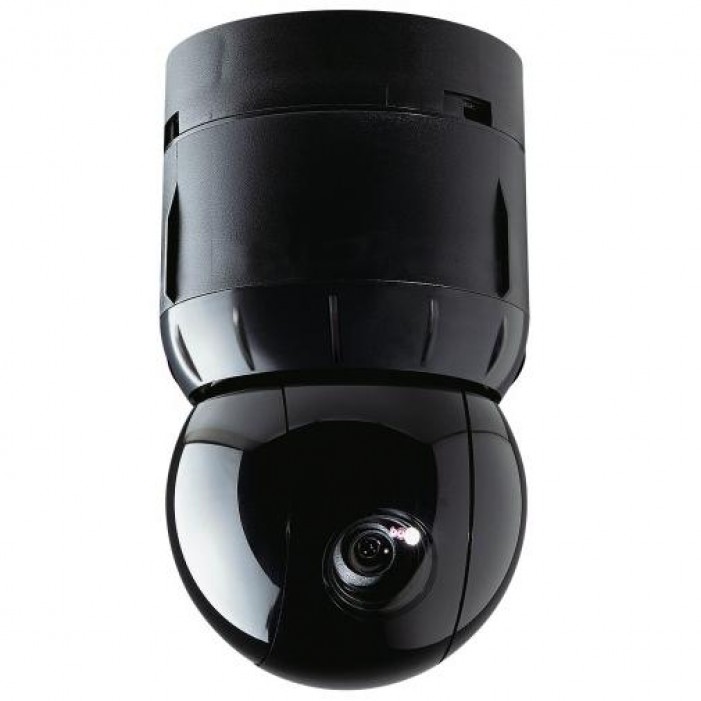

American Dynamics PTZ Dome, SDU8E Camera, Color, 22x, 470 TVL, Black

Call For Price

Dome, SDU8E, color camera module, 22x, 470 TVL, NTSC, Black. Dome, SDU8E, color camera module, 22x, 470 TVL, I/O board, NTSC, Black. The SpeedDome Ultra 8E 22x series delivers excellent color images in scenes as dim as .02 lux. Zoom ability consists of 22x optical and 11x digital zoom for 242x total zoom. Like the 35x series, the 22x offers advanced programmable features including DSS, automatic home position, dome usage statistics, increased number of privacy zones, advanced on-screen text, and freeze frame on presets to conserve digital recorder hard drive space. Helpful onscreen text and indicators show the direction the dome is currently pointing, as well as the direction in which it is moving.

  • Motion detection provides the ability to trigger multiple user-specified actions with motion tracking capabilities
  • Improved privacy zones and patterns
  • Supports additional number of third party protocols
  • Continuous autofocus provides the clearest images during full range of motion
  • Advanced on-screen display with titles provides the detail you need
  • Supports SensorNet, RS-422, AD-UTC, Manchester and select manufacturers’ Protocols
  • Supports NTCIP protocol, designed specifically for the transportation market

Specifications for American Dynamics ADSDU8E22N Dome SDU8E Color Camera Module

Condition New
SKU ADSDU8E22N
Manufacturer American Dynamics
Camera Type PTZ
Electrical Requirements 12VDC/30VAC, 11W
Image Sensor 1/4"
Connector BNC/Composite Video
Horizontal Resolution(s) 470 TVL
Lens Focal Length 4.0 - 88.0 mm.
Lens Type Motorized
Video Format Analog
Warranty Duration (3) Years
Vandal Proof? No
Waterproof? No
Color Black
Auto Iris Control? Yes
Wide Dynamic? No
